Introduction

calib-targets-rs is a workspace of Rust crates for detecting and modeling planar calibration targets from corner clouds (for example, ChESS corners). The focus is geometry-first: target modeling, grid fitting, and rectification live here, while image I/O and corner detection are intentionally out of scope.

ChArUco detection overlay on a small board.

What it is:

• A small, composable set of crates for chessboard, ChArUco, PuzzleBoard, and marker-style targets.
• A set of geometric primitives (homographies, rectified views, grid coords).
• Practical examples and tests based on the chess-corners crate.

What it is not:

• A replacement for your corner detector or image pipeline.
• A full calibration stack (no camera calibration or PnP here).

Recommended reading order:

1. Project Overview and Conventions
2. Pipeline Overview
3. Crate chapters, starting with calib-targets-core and calib-targets-chessboard

API docs.

Quickstart

Install the facade crate (the image feature is enabled by default):

cargo add calib-targets image

Minimal chessboard detection:

use calib_targets::detect;
use calib_targets::chessboard::DetectorParams;
use image::ImageReader;

fn main() -> Result<(), Box<dyn std::error::Error>> {
    let img = ImageReader::open("board.png")?.decode()?.to_luma8();
    let params = DetectorParams::default();

    let result = detect::detect_chessboard(&img, &params);
    println!("detected: {}", result.is_some());
    Ok(())
}

Python bindings

Python bindings are built with maturin:

pip install maturin
maturin develop
python crates/calib-targets-py/examples/detect_chessboard.py path/to/image.png

The calib_targets module exposes detect_chessboard, detect_charuco, detect_puzzleboard, and detect_marker_board. The public API is dataclass-first: config inputs are typed models and detector results are typed dataclasses with to_dict()/from_dict(...) helpers for JSON interoperability. detect_charuco requires params and the board lives in params.board. For marker boards, target_position is populated only when params.layout.cell_size is set and alignment succeeds.

MSRV: Rust 1.88 (stable).

Interactive Playground

The same detectors shipped in the Rust facade — chessboard, ChArUco, PuzzleBoard, and marker board — also run directly in the browser via WebAssembly. The npm package is @vitavision/calib-targets; the playground below is a thin React UI on top of it. No data leaves your machine: detection happens in the WASM module loaded into this page.

What it does

Running locally

If the embedded iframe fails to load (older browsers without WebAssembly or ES modules support), build and run the demo standalone:

scripts/build-wasm.sh                       # populates demo/pkg/
cd demo && bun install && bun run dev       # http://localhost:5173

To use the same WASM module from your own web app:

npm install @vitavision/calib-targets

import init, {
  default_chess_config,
  default_chessboard_params,
  detect_chessboard,
  rgba_to_gray,
} from "@vitavision/calib-targets";

await init();
const gray = rgba_to_gray(rgba, width, height);
const result = detect_chessboard(
  width, height, gray,
  default_chess_config(),
  default_chessboard_params(),
);

The full TypeScript surface — default_*_params(...), *_sweep_*(...), render_*_png(...), and list_aruco_dictionaries() — is documented in the package README and ships as .d.ts declarations alongside the WASM module.

Getting Started: From Target to Calibration Data

This tutorial walks you through the complete workflow:

1. Choose the right calibration target for your use case.
2. Generate a printable target file.
3. Print it correctly.
4. Write detection code in Python or Rust.

No prior knowledge of the library is assumed.

Step 1: Choose your target type

If you are unsure, start with ChArUco. It combines the subpixel accuracy of chessboard corners with the robustness of ArUco markers. Each detected corner carries a unique ID and a real-world position in millimeters, so partial views of the board are useful and board orientation is unambiguous.

If you want the absolute simplest path and only need basic intrinsic calibration, use the plain chessboard.

Step 2: Generate a printable target

Pick the language you are most comfortable with. All paths produce the same three output files: <stem>.json, <stem>.svg, <stem>.png.

Python

pip install calib-targets

import calib_targets as ct

# ChArUco: 5 rows × 7 cols, 20 mm squares, DICT_4X4_50 markers
doc = ct.PrintableTargetDocument(
    target=ct.CharucoTargetSpec(
        rows=5,
        cols=7,
        square_size_mm=20.0,
        marker_size_rel=0.75,
        dictionary="DICT_4X4_50",
    )
)
written = ct.write_target_bundle(doc, "my_board/charuco_a4")
print(written.png_path)   # open this to preview

For a plain chessboard instead:

doc = ct.PrintableTargetDocument(
    target=ct.ChessboardTargetSpec(
        inner_rows=6,
        inner_cols=8,
        square_size_mm=25.0,
    )
)
ct.write_target_bundle(doc, "my_board/chessboard_a4")

CLI

cargo install calib-targets installs the Rust binary; pip install calib-targets installs the same command as a Python console script. One-step generation:

calib-targets gen charuco \
  --out-stem my_board/charuco_a4 \
  --rows 5 --cols 7 --square-size-mm 20 \
  --marker-size-rel 0.75 --dictionary DICT_4X4_50

# Or the reviewable three-step flow:
calib-targets list-dictionaries
calib-targets init charuco \
  --out my_board/charuco_a4.json \
  --rows 5 --cols 7 --square-size-mm 20 \
  --marker-size-rel 0.75 --dictionary DICT_4X4_50
calib-targets validate --spec my_board/charuco_a4.json
calib-targets generate --spec my_board/charuco_a4.json \
  --out-stem my_board/charuco_a4

Rust

use calib_targets::printable::{write_target_bundle, PrintableTargetDocument};

fn main() -> Result<(), Box<dyn std::error::Error>> {
    let doc = PrintableTargetDocument::load_json("my_board/charuco_a4.json")?;
    let written = write_target_bundle(&doc, "my_board/charuco_a4")?;
    println!("{}", written.png_path.display());
    Ok(())
}

See calib-targets-print for the full JSON schema and more options.

Step 3: Print it

Open my_board/charuco_a4.svg (or the .png at the generated DPI) in your printer dialog:

• Set scale to 100% / “actual size”. Disable “fit to page”, “shrink to fit”, or any equivalent driver option.
• After printing, measure one square width with a ruler or caliper and confirm it matches square_size_mm (20 mm in the example above).
• If the size is wrong, fix the print dialog and reprint — do not compensate in code.
• Mount or tape the target flat to a rigid surface. Warping or bowing degrades calibration accuracy significantly.
• Prefer the SVG for professional print workflows; use the PNG for quick office printing (check the DPI matches your printer resolution).

Step 4: Detect corners in Python

The board spec used for detection must match the one used for generation exactly.

import numpy as np
from PIL import Image
import calib_targets as ct

def load_gray(path: str) -> np.ndarray:
    return np.asarray(Image.open(path).convert("L"), dtype=np.uint8)

# Board spec — must match the generated target
board = ct.CharucoBoardSpec(
    rows=5,
    cols=7,
    cell_size=20.0,          # mm; gives target_position in mm
    marker_size_rel=0.75,
    dictionary="DICT_4X4_50",
    marker_layout=ct.MarkerLayout.OPENCV_CHARUCO,
)

params = ct.CharucoParams(board=board)

image = load_gray("frame.png")

try:
    result = ct.detect_charuco(image, params=params)
except RuntimeError as exc:
    print(f"Detection failed: {exc}")
    raise SystemExit(1)

corners = result.detection.corners
print(f"Detected {len(corners)} corners, {len(result.markers)} markers")

# Collect point pairs for solvePnP / calibrateCamera
obj_pts = []  # 3-D object points (Z = 0 for planar board)
img_pts = []  # 2-D image points
for c in corners:
    if c.target_position is not None:
        x_mm, y_mm = c.target_position
        obj_pts.append([x_mm, y_mm, 0.0])
        img_pts.append(c.position)

print(f"Point pairs ready for calibration: {len(obj_pts)}")

For a plain chessboard:

result = ct.detect_chessboard(image)
if result is None:
    raise SystemExit("No chessboard detected")

corners = result.detection.corners
print(f"Detected {len(corners)} corners")
# target_position is None for chessboard — assign object points by grid index
for c in corners:
    i, j = c.grid          # (col, row), origin top-left
    obj_pts.append([i * square_size_mm, j * square_size_mm, 0.0])
    img_pts.append(c.position)

Step 5: Detect corners in Rust

# Cargo.toml
[dependencies]
calib-targets = "0.4"
image = "0.25"

use calib_targets::charuco::{CharucoBoardSpec, CharucoParams, MarkerLayout};
use calib_targets::detect;
use image::ImageReader;

fn main() -> Result<(), Box<dyn std::error::Error>> {
    let img = ImageReader::open("frame.png")?.decode()?.to_luma8();

    let board = CharucoBoardSpec {
        rows: 5,
        cols: 7,
        cell_size: 20.0,      // mm
        marker_size_rel: 0.75,
        dictionary: "DICT_4X4_50".parse()?,
        marker_layout: MarkerLayout::OpencvCharuco,
        ..Default::default()
    };

    let params = CharucoParams::for_board(&board);

    let result = detect::detect_charuco(&img, &params)?;
    println!(
        "corners: {}, markers: {}",
        result.detection.corners.len(),
        result.markers.len()
    );

    // Collect point pairs
    for c in &result.detection.corners {
        if let Some(tp) = c.target_position {
            let obj = [tp[0], tp[1], 0.0_f32];
            let img = c.position;
            // pass (obj, img) to your calibration solver
            let _ = (obj, img);
        }
    }
    Ok(())
}

Next steps

Tuning the Detector

This chapter answers the question: “My detection fails or gives poor results — what do I change?”

Start here: use the built-in defaults

Before tuning anything, confirm you are starting from the library defaults:

#![allow(unused)]
fn main() {
use calib_targets::detect::detect_chessboard;
use calib_targets::chessboard::DetectorParams;

let params = DetectorParams::default();
}

For ChArUco:

#![allow(unused)]
fn main() {
use calib_targets::charuco::CharucoParams;
let board = todo!();

let params = CharucoParams::for_board(&board);
}

The chessboard detector’s ChESS corner config is not carried inside DetectorParams — it’s a separate argument via calib_targets::detect::default_chess_config() (used automatically by the detect_chessboard* facade helpers). If you need to override it, call calib_targets::detect::detect_corners(&img, &custom_chess_config) directly and pass the resulting Vec<Corner> into calib_targets::chessboard::Detector::new(params).detect(&corners).

For ChArUco, CharucoParams.chessboard is a DetectorParams (flat shape — no nested sub-structs). Board sampling scale is controlled separately by CharucoParams::for_board, which starts with px_per_square = 60. If marker decoding is the problem and the board appears at a very different pixel scale, adjust px_per_square before touching other parameters.

Challenging images: multi-config sweep

For images with uneven lighting, Scheimpflug optics, or narrow focus strips, a single threshold may miss corners in some regions. Use the multi-config sweep to try several parameter variants and keep the best result:

#![allow(unused)]
fn main() {
use calib_targets::detect::{detect_chessboard_best, detect_charuco_best};
use calib_targets::chessboard::DetectorParams;
use calib_targets::charuco::CharucoParams;
let img: image::GrayImage = todo!();
let board = todo!();

let chess_configs = DetectorParams::sweep_default();
let chess_result = detect_chessboard_best(&img, &chess_configs);

let charuco_configs = CharucoParams::sweep_for_board(&board);
let charuco_result = detect_charuco_best(&img, &charuco_configs);
}

DetectorParams::sweep_default() returns three configs: default + tighter + looser on cluster_tol_deg, seed_edge_tol, and attach_axis_tol_deg. All three preserve the detector’s precision- by-construction invariants; only recall-affecting tolerances are varied.

For PuzzleBoard, use PuzzleBoardParams::sweep_for_board(&spec).

Multi-component detection (via Detector::detect_all / the facade detect_chessboard_all) recovers fragmented grids where markers break contiguity — each disconnected piece comes back as its own Detection with its own locally-rebased (i, j) labels. Capped by DetectorParams::max_components (default 3).

Symptom → parameter table

Per-parameter reference: chessboard::DetectorParams

DetectorParams is a flat #[non_exhaustive] struct with ~30 fields covering every stage of the pipeline. The fields below are the ones users typically touch; see the chessboard chapter for the full invariant-to-parameter mapping and crates/calib-targets-chessboard/src/params.rs for defaults.

Stage 1 — pre-filter

Stages 2-3 — grid-direction clustering

Stage 5 — seed

Stage 6 — grow

Stage 7 — validate

Stage 8 — recall boosters

Per-stage toggles: enable_line_extrapolation, enable_gap_fill, enable_component_merge, enable_weak_cluster_rescue (all default true). Leave them on unless a specific booster is producing false positives for you.

Output gates

Per-parameter reference: ScanDecodeConfig / ChArUco

These parameters live inside CharucoParams.

min_border_score

Default: 0.75 for ChArUco.

Guidance: Minimum contrast score for the black border ring around a marker. Lower cautiously to 0.65 for very blurry images. Values below 0.60 risk accepting non-marker regions.

multi_threshold

Default: true.

Guidance: When enabled, the decoder tries several Otsu-style binarization thresholds until a dictionary match is found. This handles uneven lighting and motion blur at the cost of a small speed penalty. Disable only when speed is critical and lighting is controlled.

inset_frac

Default: 0.06 for ChArUco.

Guidance: Fraction of the cell size inset from the cell boundary before sampling the marker interior. Raise to 0.10–0.12 when the cell boundary visibly bleeds into the bit area (common with thick printed borders or strong blur).

marker_size_rel

Source: Board specification — must match the printed board exactly.

Guidance: Ratio of the ArUco marker side to the chessboard square side. A mismatch here causes systematic decoding failures even when all other parameters are correct. Verify against the printed board or the JSON spec used to generate it.

Quick checklist

1. Start with defaults; run with RUST_LOG=debug to see corner counts and per-stage counters.
2. If no corners are found: loosen min_corner_strength, check image resolution and contrast.
3. If corners found but no grid (detect_chessboard returns None): inspect the DebugFrame via detect_chessboard_debug — the grid_directions: None case means clustering failed (try lowering min_peak_weight_fraction), seed: None means seeding failed (try detect_chessboard_best), and an iteration trace that never converges means max_validation_iters was hit (raise it).
4. If grid found but no ChArUco markers: enable multi_threshold, lower min_border_score.
5. If alignment fails: verify board spec (rows, cols, dictionary, marker_size_rel).
6. If you observe wrong (i, j) labels, that’s a precision- contract bug — file an issue rather than tuning around it. The detector is engineered to drop corners before it labels them wrong.

See also: Troubleshooting for per-error checklists and the Chessboard Detector chapter for the full invariant stack.

Troubleshooting

This chapter maps each error variant to a diagnostic checklist. For parameter descriptions, see Tuning the Detector.

Reading the debug log

Enable debug logging before anything else:

RUST_LOG=debug cargo run --example detect_charuco -- testdata/small2.png

Or from code:

#![allow(unused)]
fn main() {
tracing_subscriber::fmt().with_max_level(tracing::Level::DEBUG).init();
}

Key log lines and what they tell you:

If you do not see these lines, confirm RUST_LOG=debug is set in the shell that runs the binary, not in a parent process.

detect_chessboard returns None

The detector has no single error variant — a None return means some stage failed to converge. To diagnose, use detect_chessboard_debug to get a full DebugFrame and follow the chain:

#![allow(unused)]
fn main() {
use calib_targets::detect::detect_chessboard_debug;
use calib_targets::chessboard::DetectorParams;
let img: image::GrayImage = todo!();

let frame = detect_chessboard_debug(&img, &DetectorParams::default());
println!("stage counts: {:#?}", frame.corners.iter().fold(
    std::collections::HashMap::new(),
    |mut acc, c| {
        *acc.entry(format!("{:?}", c.stage)).or_insert(0u32) += 1;
        acc
    },
));
println!("grid_directions: {:?}", frame.grid_directions);
println!("cell_size: {:?}", frame.cell_size);
println!("seed: {:?}", frame.seed);
println!("iterations: {:#?}", frame.iterations);
}

Checklist:

1. No ChESS corners found? Look for input_count: 0 in the frame. The ChESS detector saw nothing. Check image resolution / contrast; override calib_targets::detect::default_chess_config() with a custom ChessConfig (lower threshold_value, change threshold_mode) if necessary.

2. Corners found, grid_directions: None? Clustering failed. Most common causes:

   • Noisy axes: raise cluster_tol_deg (default 12.0 → try 16.0).
   • Few real corners: lower min_peak_weight_fraction (default 0.02 → try 0.01).
   • Perfectly rectilinear board with axes exactly at the π-wrap boundary: the detector handles this via plateau-aware peak picking — if you hit this, verify you’re on v0.6.0+.

3. grid_directions set, seed: None? Seeding failed — no qualifying 2×2 quad was found.

   • Try detect_chessboard_best with DetectorParams::sweep_default() (widens seed tolerances).
   • Raise seed_edge_tol (default 0.25) if the board has noticeable cell-size variation under perspective.

4. seed set, detection: None? Validation failed to converge.

   • Check iterations: if the labelled count oscillates, raise max_validation_iters (default 3 → try 6).
   • Scene may contain multiple boards — try detect_chessboard_all and handle each component separately.

5. Multiple same-board components in the scene (ChArUco markers break contiguity): this is expected. Use detect_chessboard_all; each piece comes back with its own locally-rebased (i, j).

NoMarkers

All ChESS corners were found and the chessboard grid was assembled, but no ArUco/AprilTag marker was decoded inside any cell.

Checklist:

1. Correct dictionary? The dictionary field in the board spec must match the one used when printing. A mismatch produces cell (x,y) passed threshold but no dict match in the log for every cell.

2. Correct marker_size_rel? If the sampled region is the wrong fraction of the cell, the bit cells will be misaligned. Verify against the board spec.

3. Blurry image?

   • Enable multi_threshold: true (already the default for ChArUco).
   • Lower min_border_score to 0.65–0.70.

4. Uneven lighting? multi_threshold handles this automatically. If already enabled, check whether the board surface has specular reflections — these cannot be corrected by thresholding alone.

5. Wrong scale? If px_per_square is far from the actual pixel size, the projective warp used for cell sampling will produce a very small or very large patch. Adjust CharucoParams.px_per_square.

AlignmentFailed { inliers: N }

Markers were decoded, but fewer than min_marker_inliers of them matched the board specification in a geometrically consistent way.

Checklist:

1. inliers = 0: No decoded marker ID appears in the board layout at all.

   • Board spec mismatch: wrong rows, cols, dictionary, or marker_layout.
   • Marker IDs may be correct but the layout offset is wrong (e.g. the board was generated with a non-zero first_marker id).

2. inliers small but non-zero:

   • Board is partially visible — lower min_marker_inliers to the number of markers you reliably expect to see.
   • Strong perspective distortion — the homography RANSAC may not converge. Raise orientation_tolerance_deg so more corners enter the initial grid.

3. inliers near threshold:

   • One or two spurious decodings are pulling the fit off. Raise min_border_score slightly to reject low-confidence markers.

Common image problems

Getting more help

• Open an issue on GitHub and attach the debug log (with RUST_LOG=debug), image, and board spec.
• See Tuning the Detector for full parameter reference.
• See Understanding Results for field meanings and score thresholds.

Understanding Detection Results

This chapter describes every field of TargetDetection and LabeledCorner, explains when optional fields are populated, and gives guidance on interpreting score values.

TargetDetection

#![allow(unused)]
fn main() {
pub struct TargetDetection {
    pub kind:    TargetKind,
    pub corners: Vec<LabeledCorner>,
}
}

kind identifies the target type:

corners is a Vec<LabeledCorner> ordered differently per target type:

• Chessboard: row-major order (left-to-right, top-to-bottom by grid coordinates).
• ChArUco: ordered by ascending id.
• PuzzleBoard: ordered by detected grid traversal, with absolute master-grid coordinates in grid.
• Marker board: ordered by grid coordinates (i, j).

LabeledCorner fields

#![allow(unused)]
fn main() {
pub struct LabeledCorner {
    pub position:        [f32; 2],
    pub grid:            Option<[i32; 2]>,
    pub id:              Option<u32>,
    pub target_position: Option<[f32; 2]>,
    pub score:           f32,
}
}

position

Pixel coordinates of the detected corner in the input image.

• Origin: top-left.
• X axis: right; Y axis: down.
• Sub-pixel accuracy; values are not rounded to integer pixels.

grid — (i, j)

Integer corner coordinates within the detected grid.

• i = column index (increases right).
• j = row index (increases downward).
• Origin: top-left corner of the detected region (not necessarily the top-left of the physical board — the detector does not know board orientation).

Always populated for chessboard and marker board detections. Populated for ChArUco when a board spec is provided (i.e., when alignment succeeds).

id

Logical marker corner ID. ChArUco only.

Each inner corner of a ChArUco board is shared by two squares and is assigned a unique integer ID by the board specification. This ID is identical to the one used by OpenCV’s aruco::CharucoBoard. For chessboard and marker board detections, id is always None.

target_position

Real-world position of the corner in board units (typically millimeters when cell_size is given in mm).

Use target_position directly as the object-space point for camera calibration (pass alongside the corresponding position as the image-space point).

score

A 0..1 quality score for this corner’s associated marker decode. Higher is better.

The score blends the border contrast of the surrounding marker border ring and a Hamming penalty based on the number of bit errors when matching to the dictionary. For chessboard corners (no marker), score reflects the ChESS corner response strength, normalised to 0..1.

Interpretation:

Corners with score < min_border_score are filtered out before being returned, so scores below that threshold will not appear in the output.

ChArUco-specific: CharucoDetectionResult

detect_charuco returns CharucoDetectionResult rather than a bare TargetDetection:

#![allow(unused)]
fn main() {
pub struct CharucoDetectionResult {
    pub detection: TargetDetection,
    pub markers:   Vec<MarkerDetection>,
    pub alignment: Option<GridAlignment>,
}
}

markers

Raw list of decoded ArUco markers, one per cell that passed decoding. Each MarkerDetection carries:

• id: decoded dictionary ID.
• border_score: the contrast score for the border ring (maps to score in LabeledCorner for marker-anchored corners).
• code: the raw decoded bit pattern (before dictionary lookup).
• rotation: 0/1/2/3 clockwise 90° rotations applied to normalise the marker.

alignment

When not None, carries the affine/homographic mapping between board-grid coordinates and image-pixel coordinates. Populated when at least min_marker_inliers markers agree on a consistent geometric transformation. Use this to project additional board points into the image without re-running detection.

FAQ

Q: Why are grid coordinates not always the same as the printed board coordinates?

The detector builds the grid from scratch without knowing which corner is the board’s physical origin. For plain chessboards and marker boards, the (0, 0) origin is the top-left of the detected region in the image, not necessarily the physical board corner. Use id (ChArUco or PuzzleBoard) or target_position to obtain board-canonical positions.

Q: Can I use target_position directly for solvePnP?

Yes. Pair each LabeledCorner.position (image point) with the corresponding LabeledCorner.target_position (object point) and pass them to solvePnP or your calibration solver. Filter to corners where target_position.is_some() first.

Q: What is a normal score for a well-printed board under good lighting?

Typical values are 0.88–0.97. Scores consistently below 0.80 suggest image blur, poor print quality, or an incorrect inset_frac.

Project Overview

calib-targets-rs is a single Cargo workspace with multiple publishable crates under crates/. The design is layered: calib-targets-core provides geometry and shared types, higher-level crates build on top, and the facade crate (calib-targets) is intended to be the main entry point.

Workspace layout

• calib-targets-core: shared geometry types and utilities.
• calib-targets-chessboard: chessboard detection from corner clouds.
• calib-targets-aruco: embedded dictionaries and decoding on rectified grids.
• calib-targets-charuco: grid-first ChArUco detector and alignment.
• calib-targets-puzzleboard: self-identifying chessboard detector with absolute corner IDs from edge dots.
• calib-targets-marker: checkerboard marker detector (chessboard + circles).
• calib-targets: facade crate, currently hosting examples and future high-level APIs.

Strengths

• Clear crate boundaries with a small, geometry-first core.
• Chessboard detection pipeline is implemented end-to-end with debug outputs.
• Mesh-warp rectification supports lens distortion without assuming a single global homography.
• Examples and regression tests exist for all workflows.

Gaps and early-stage areas

• Public APIs are not yet stable.
• ArUco decoding assumes rectified grids and does not perform quad detection.
• Performance/benchmarks are not yet a focus.

Conventions

These conventions are used throughout the workspace. They are not optional and should not change silently.

Coordinate systems

• Image pixels: origin at top-left, x increases right, y increases down.
• Grid coordinates: i increases right, j increases down.
• Grid indices in detections are corner indices (intersections), not square indices, unless explicitly stated otherwise.

Homography and quad ordering

• Quad corner order is always TL, TR, BR, BL (clockwise).
• The ordering must match in both source and destination spaces.
• Never use self-crossing orders like TL, TR, BL, BR.

Sampling and pixel centers

• Warping and sampling should be consistent about pixel centers.
• When in doubt, treat sample locations as (x + 0.5, y + 0.5) in pixel space.

Orientation angles

• ChESS-style corner orientations are in radians and defined modulo pi (not 2*pi).
• Orientation clustering finds two dominant directions and assigns each corner to cluster 0 or 1, or marks it as an outlier.

Marker bit conventions

• Marker codes are packed in row-major order.
• Black pixels represent bit value 1.
• Border width is defined in whole cells (border_bits).

If you introduce new algorithms or data structures, document any additional conventions in the relevant crate chapter.

Pipeline Overview

Every detector in the workspace shares the same high-level workflow: take a grayscale image (or a pre-detected corner cloud), produce a TargetDetection with labelled (i, j) grid coordinates, logical marker IDs (where applicable), and rectification-ready pixel positions.

Shared stages

┌───────────┐    ┌───────────┐    ┌───────────┐    ┌───────────┐
│  Image    │ -> │  ChESS    │ -> │ Target-   │ -> │ Labelled  │
│ (u8 gray) │    │ corners   │    │ specific  │    │ grid out  │
└───────────┘    │ (front-   │    │ detector  │    │           │
                 │  end)     │    │           │    │           │
                 └───────────┘    └───────────┘    └───────────┘

1. Input image — image::GrayImage or a GrayImageView. The facade helpers in calib_targets::detect accept either.
2. Corner front-end — ChESS X-junction detector via the chess-corners crate. Produces a Vec<Corner> — per-corner position, two axis-angle estimates, strength, and fit residuals. The workspace’s default config is calib_targets::detect::default_chess_config().
3. Target-specific detector — see the dedicated chapters:
   • Chessboard — invariant-first detector precision-by-construction on our private regression dataset (high detection rate, zero wrong labels).
   • ChArUco — chessboard detector + ArUco marker decoding + alignment.
   • PuzzleBoard — chessboard detector + edge-dot decoder.
   • Marker board — ChESS checker corners + 3-circle marker anchoring.
4. Output — every detector produces a TargetDetection wrapping a Vec<LabeledCorner>. Higher-level detectors (ChArUco, PuzzleBoard) wrap that in their own result struct with extra metadata (marker decodes, alignment, per-corner IDs).

Chessboard detector internals

The chessboard detector itself runs eight internal stages. The invariant-first framing means every stage emits a more-constrained subset of the previous stage’s output, with no backtracking that would compromise precision:

Stages 5-7 run inside a blacklist loop — each iteration the validator may reject outliers; the pipeline re-seeds on the remaining set. Capped by DetectorParams::max_validation_iters (default 3).

See the Chessboard Detector chapter for the full invariant stack and failure-mode analysis.

Which crate does what

The chessboard detector algorithm is split across two crates:

• projective-grid owns the pattern-agnostic machinery — BFS growth, KD-tree candidate search, circular- histogram peak picking (plateau-aware), double-angle 2-means, line / local-H validation. No calibration-specific dependencies; useful standalone.
• calib-targets-chessboard supplies the chessboard-specific pieces that plug into the generic trait surface: ChESS-axis-based clustering, ClusterLabel parity, per-axis-slot edge validation, boosters. Orchestrates the end-to-end pipeline.

Output types are standardised in calib-targets-core as TargetDetection with LabeledCorner values. Higher-level crates enrich that output with additional metadata (marker detections, rectified views, per-corner IDs).

Crates

The workspace is organized as a stack of crates with minimal, composable boundaries.

Dependency direction

• calib-targets-core is the base and should not depend on higher-level crates.
• calib-targets-chessboard depends on core for geometry and types.
• calib-targets-aruco depends on core for rectified image access.
• calib-targets-charuco depends on chessboard and aruco.
• calib-targets-puzzleboard depends on chessboard and uses committed code-map blobs for absolute edge-code decoding.
• calib-targets-marker depends on chessboard and core.
• calib-targets-print depends on the target crates and owns printable-target rendering.
• calib-targets is the facade that re-exports types and offers end-to-end helpers.

Python bindings

Python bindings are provided by the calib-targets-py crate (module name calib_targets). It depends on the facade crate and is built with maturin; see crates/calib-targets-py/README.md in the repository root.

Where to start

If you are new to the codebase, start with:

1. calib-targets-core
2. calib-targets-chessboard

Then branch into the target-specific crates depending on your use case.

calib-targets-core

calib-targets-core provides shared geometric types and utilities. It is intentionally small and purely geometric; it does not depend on any particular corner detector or image pipeline.

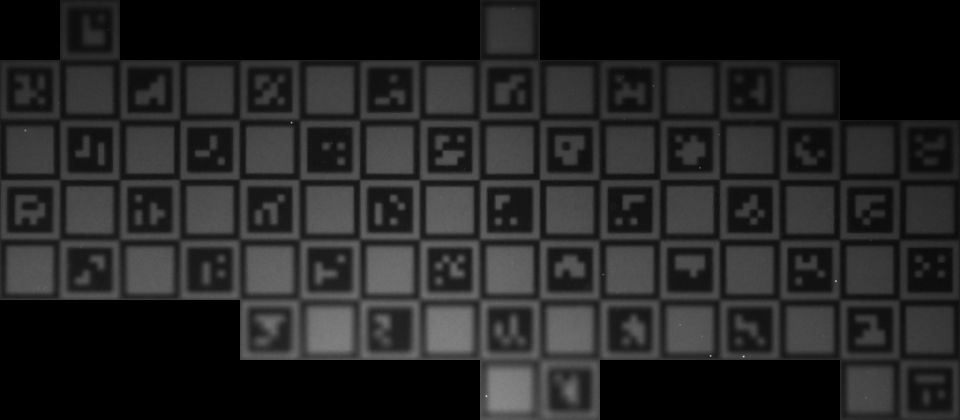

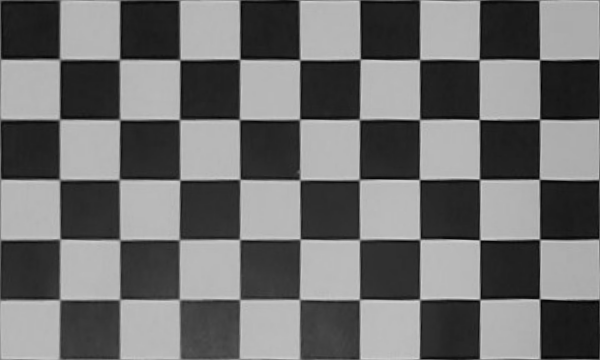

Global rectification output from the chessboard pipeline.

Core data types

• Corner: raw corner observations from your detector.
  • position: image-space pixel coordinates.
  • orientation: dominant grid orientation in radians, defined modulo pi.
  • orientation_cluster: optional cluster index (0 or 1) if clustering is used.
  • strength: detector response.
• GridCoords: integer grid indices (i, j) in board space.
• LabeledCorner: a detected corner with optional grid coordinates and logical ID.
• TargetDetection: a collection of labeled corners for one board instance.
• TargetKind: enum for Chessboard, Charuco, or CheckerboardMarker.

These types are shared across all detectors so downstream code can be target-agnostic.

Orientation clustering

ChESS corner orientations are only defined modulo pi. The clustering utilities help recover two dominant grid directions:

• cluster_orientations: histogram-based peak finding followed by 2-means refinement.
• OrientationClusteringParams: histogram size, separation thresholds, outlier rejection.
• compute_orientation_histogram: debug visualization helper.
• estimate_grid_axes_from_orientations: a lightweight fallback when clustering fails.

Chessboard detection uses these helpers to label corners by axis and to reject outliers.

Homography and rectification

Homography is a small wrapper around a 3x3 matrix with helpers for DLT estimation and point mapping:

• estimate_homography_rect_to_img: DLT with Hartley normalization for N >= 4 point pairs.
• homography_from_4pt: direct 4-point estimation.
• warp_perspective_gray: warp a grayscale image using a homography.

For mapping rectified pixels back to the original image, core defines:

• RectifiedView: a rectified grayscale image and its mapping info.
• RectToImgMapper: either a single global homography or a per-cell mesh map.

Higher-level crates (notably chessboard) wrap these utilities for global or mesh rectification.

Image utilities

GrayImage and GrayImageView are lightweight, row-major grayscale buffers with bilinear sampling helpers:

• sample_bilinear: float sampling with edge clamp to 0.
• sample_bilinear_u8: u8 sampling with clamping to 0..255.

These utilities are used by rectification and marker decoding.

Conventions recap

• Coordinate system: origin at top-left, x right, y down.
• Grid coordinates: i right, j down, and grid indices refer to corners.
• Quad order: TL, TR, BR, BL in both source and destination spaces.

If you build on core types, stick to these conventions to avoid subtle alignment bugs.

projective-grid (Standalone)

Code: projective-grid.

projective-grid is the pattern-agnostic core of the workspace’s grid detectors. It exposes two grid-construction pipelines (seed-and- grow BFS and a topological Delaunay-based finder), boundary-extension machinery, per-cell rectification, circular-statistics peak picking, and line / local-homography validation — with no dependency on calibration-specific types.

The crate ships independently on crates.io and is used directly for non-calibration tasks: rectifying a photograph of a board game, fitting a locally-planar lattice to a laser-dot cloud, extracting a grid from a scanned document, or building a new detector for a pattern the workspace doesn’t yet ship.

Pipelines

Square seed-and-grow (default)

A five-stage pipeline. Pattern-specific gates (parity, axis-cluster, marker rules, …) plug in via the square::grow::GrowValidator trait; the geometric machinery is generic.

square::grow_extension is a deprecated alias for square::extension retained for back-compat; new code imports from square::extension directly.

Topological grid finder

projective_grid::build_grid_topological implements the Shu / Brunton / Fiala 2009 grid finder: Delaunay triangulation over the corner cloud, edge classification by per-edge axis match, triangle- pair → quad merge, and flood-fill (i, j) labelling. Image-free — the original paper’s per-cell colour test is replaced by an axis- driven cell predicate so projective-grid stays standalone.

use projective_grid::{
    build_grid_topological, merge_components_local,
    ComponentInput, LocalMergeParams, TopologicalParams,
};

let topo = build_grid_topological(&positions, &axes_hints, &TopologicalParams::default())?;

// merge_components_local reunites partial components and is shared
// with the seed-and-grow pipeline.
let views: Vec<ComponentInput<'_>> = topo.components.iter()
    .map(|c| ComponentInput { labelled: &c.labelled, positions: &positions })
    .collect();
let merged = merge_components_local(&views, &LocalMergeParams::default());

ChessboardV2 selects between the two pipelines via DetectorParams::graph_build_algorithm; the default is ChessboardV2 (seed-and-grow). The topological path runs faster and denser on clean PuzzleBoards but currently regresses recall on ChArUco-style images because marker-internal corners poison the per-cell axis test. ChArUco unconditionally pins seed-and-grow inside CharucoDetector::new regardless of caller choice.

See crates/projective-grid/docs/TOPOLOGICAL_PIPELINE.md in the workspace for the per-stage algorithm description and known limitations.

Reusable utilities

• Circular statistics (circular_stats) — plateau-aware peak detection and double-angle 2-means for axis-angle histograms.
• Homography (homography) — 4-point + DLT solver with Hartley normalisation and a reprojection-quality diagnostic. The DLT path uses normal equations + 9×9 symmetric eigendecomposition for the null-vector solve.
• Component merge (component_merge::merge_components_local) — position-based Hough alignment of (D4-transform, label-delta), shared by both pipelines as the post-stage that reunites partial components.

Extension point: GrowValidator

use projective_grid::square::grow::{Admit, GrowValidator, LabelledNeighbour};
use nalgebra::Point2;

impl GrowValidator for MyValidator {
    fn is_eligible(&self, idx: usize) -> bool { /* … */ }
    fn required_label_at(&self, i: i32, j: i32) -> Option<u8> { /* … */ }
    fn label_of(&self, idx: usize) -> Option<u8> { /* … */ }

    fn accept_candidate(
        &self,
        idx: usize,
        at: (i32, i32),
        prediction: Point2<f32>,
        neighbours: &[LabelledNeighbour],
    ) -> Admit {
        // Accept / Reject per candidate in order of increasing
        // distance to `prediction`.
    }

    fn edge_ok(
        &self,
        candidate_idx: usize,
        neighbour_idx: usize,
        at_candidate: (i32, i32),
        at_neighbour: (i32, i32),
    ) -> bool { /* soft per-edge check */ true }
}

The same validator is used by bfs_grow (Stage 5) and extend_via_global_homography (Stage 6) — so parity, axis-matching, and edge invariants are enforced identically across both paths.

The chessboard detector’s plug-in (crates/calib-targets-chessboard/src/grow.rs) is the reference implementation: chess-specific axis-slot logic on top of the generic BFS / boundary-extension machinery.

Module layout

projective-grid/src/
├── lib.rs
├── float_helpers.rs          (private)
├── global_step.rs            cell-size estimation from a raw cloud
├── local_step.rs             per-region local-step estimation
├── homography.rs             Homography, HomographyQuality, 4pt + DLT
├── circular_stats.rs         wrap_pi, smooth_circular_5, pick_two_peaks,
│                             refine_2means_double_angle
├── affine.rs                 AffineTransform2D (generic 2D)
├── component_merge.rs        merge_components_local
├── square/                   4-connected square-grid support
│   ├── alignment.rs          D4 transforms
│   ├── grow.rs               GrowValidator, bfs_grow, GrowResult
│   ├── grow_extend.rs        extend_from_labelled (post-cluster boost)
│   ├── extension/            Stage 6 — global / local homography
│   │   ├── common.rs         try_attach_at_cell (shared per-cell ladder)
│   │   ├── global.rs         extend_via_global_homography
│   │   └── local.rs          extend_via_local_homography
│   ├── index.rs              GridCoords (i, j)
│   ├── mesh.rs               SquareGridHomographyMesh (per-cell)
│   ├── rectify.rs            SquareGridHomography (global)
│   ├── seed/                 2×2 seed primitives + finder
│   │   ├── mod.rs            Seed, SeedOutput, midpoint check
│   │   └── finder.rs         find_quad, SeedQuadValidator
│   ├── smoothness.rs         square_predict_grid_position,
│   │                         square_find_inconsistent_corners
│   └── validate/             post-grow validation
│       ├── mod.rs            validate(), LabelledEntry, ValidationParams
│       ├── lines.rs          line collinearity flags
│       ├── local_h.rs        local-H residual
│       └── step.rs           per-corner step + step-deviation flags
├── topological/              Shu/Brunton/Fiala 2009 grid finder
│   ├── mod.rs                build_grid_topological, AxisHint
│   ├── classify.rs           edge classification
│   ├── delaunay.rs           triangulation wrapper
│   ├── quads.rs              triangle-pair → quad merge
│   ├── topo_filter.rs        topological + geometric filter
│   └── walk.rs               flood-fill (i, j) labelling
└── hex/                      6-connected hex-grid (geometry only,
    ├── alignment.rs           no seed-and-grow path yet)
    ├── mesh.rs
    ├── rectify.rs
    └── smoothness.rs

Invariants worth keeping in mind

Undirected-angle circular means

When averaging axis directions (orientations, not headings), accumulate (cos 2θ, sin 2θ) and halve the resulting atan2. circular_stats:: refine_2means_double_angle does this correctly; naive (cos θ, sin θ) averaging silently breaks at the 0°/180° seam.

Plateau-aware peak detection

When a physical direction’s mass straddles a histogram bin boundary, the smoothed peak is flat-topped across two adjacent bins. Naive strict local-maximum detection misses it entirely. circular_stats:: pick_two_peaks handles this by looking for maximal runs of equal- valued bins bordered on both sides by strictly lower values, and returning the plateau’s midpoint.

Non-negative grid labels with visual top-left origin

All (i, j) output from bfs_grow is rebased so the bounding-box minimum is (0, 0). Downstream consumers that canonicalise axis direction (the chessboard detector does this in calib_targets_chessboard::Detector::detect) additionally swap / flip axes so (0, 0) sits at the visual top-left of the detected grid — +i points right (+x), +j points down (+y). This is not enforced by bfs_grow itself — it’s a pattern-side contract.

Boundary extension is precision-safe

Both extension flavours go through every gate the BFS uses — is_eligible, label_of against required_label_at, accept_candidate, and edge_ok — plus a tighter ambiguity gate (2.5× vs BFS’s 1.5×) and a single-claim guarantee (one corner index can only be claimed by one cell per pass). The global-H pass adds an H-residual gate on the BFS-validated set: under heavy lens distortion the gate fires and the pass becomes a no-op. The local-H pass uses a per-candidate worst-residual gate over the K supports instead of a single global threshold, so it stays useful where global-H refuses.

Out of scope

• 3D grids. Coordinates are nalgebra::Point2<f32>. There is no 3D support.
• Non-planar surfaces. Boundary extension assumes a single planar homography fits the labelled set. Severely curved surfaces need the per-cell mesh variant for rectification, and the global-H extension refuses to extend under those conditions.
• Dense point clouds without structure. The seed finder assumes the lattice spacing is recoverable from the seed’s own edge lengths; pure noise does not yield a stable seed.

The Chessboard Detector

Code: calib-targets-chessboard. Related: the generic BFS growth, circular-histogram peak picking, and line/local-H validation live in the standalone projective-grid crate.

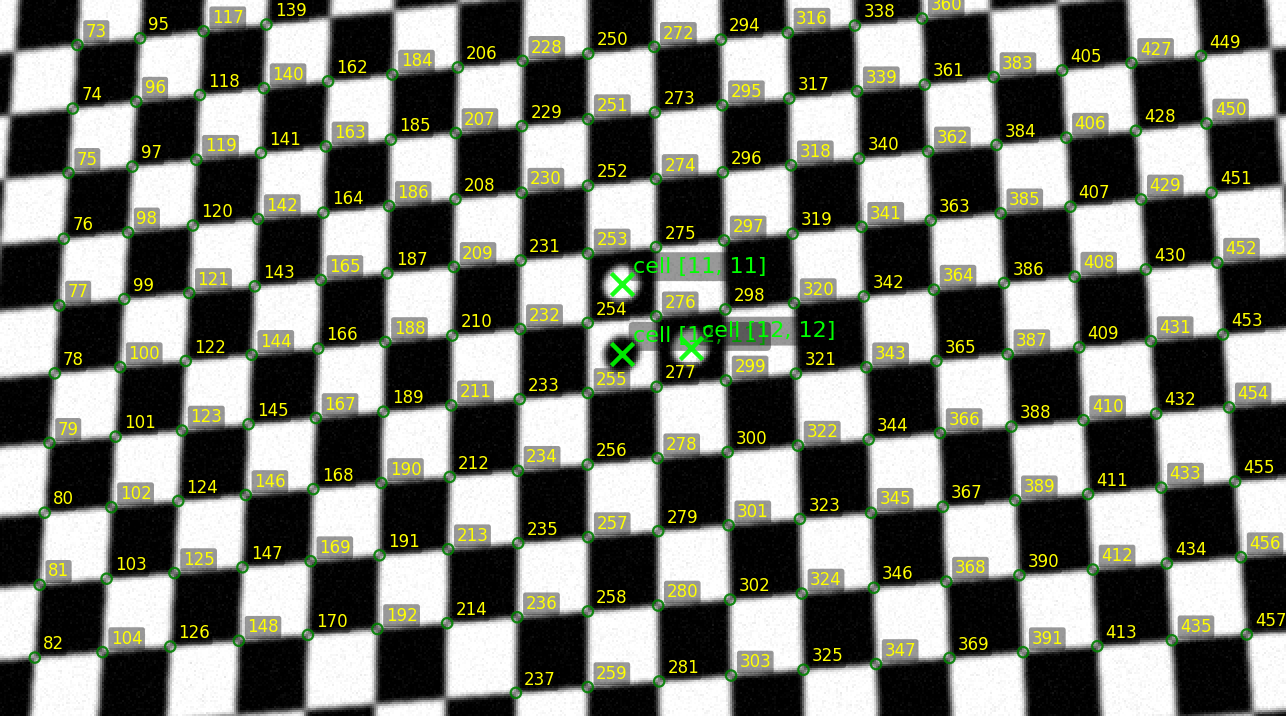

The chessboard detector takes a cloud of ChESS X-junction corners and produces an integer-labelled chessboard grid (i, j) → image position. It is precision-by-construction: every emitted label has been proven to sit at a real grid intersection by a stack of independent geometric invariants. Missing corners are acceptable; wrong corners are not.

On our private regression dataset (captured with non-negligible lens distortion and motion blur — uncommitted; see privatedata/ for how to reproduce locally) the detector achieves a high detection rate with zero wrong (i, j) labels — precision-by-construction.

A wrong label would corrupt downstream calibration; that is the constraint the algorithm refuses to break.

┌───────┐    ┌──────────┐    ┌──────────┐    ┌──────────┐    ┌───────────┐
│Corners│ -> │ Pre-     │ -> │ Cluster  │ -> │ Seed +   │ -> │ Validate  │
│  in   │    │ filter   │    │ axes,    │    │ Grow     │    │ + Recall  │
└───────┘    │ (Stage 1)│    │ Cell     │    │ (Stages  │    │ Boosters  │
             └──────────┘    │ size     │    │ 5 + 6)   │    │ (Stages   │
                             │ (Stages  │    └──────────┘    │ 7 + 8)    │
                             │ 2-4)     │                    └───────────┘
                             └──────────┘

1. Corner axes contract

The detector reads only one orientation signal per corner: Corner.axes: [AxisEstimate; 2]. Convention (enforced workspace-wide and documented in CLAUDE.md):

• axes[0].angle ∈ [0, π), axes[1].angle ∈ (axes[0].angle, axes[0].angle + π).
• axes[1] − axes[0] ≈ π/2 — the two axes are orthogonal grid directions (NOT diagonals of unit squares).
• The CCW sweep from axes[0] to axes[1] crosses a dark sector. This encodes parity: at parity-0 corners axes[0] ≈ Θ_horizontal (dark-entering), at parity-1 corners axes[0] ≈ Θ_vertical. Adjacent chessboard corners therefore have opposite axis-slot assignments.
• Default-constructed axes carry sigma = π (no information) and are filtered out in Stage 1.

Any function computing a circular mean of axis angles MUST accumulate (cos 2θ, sin 2θ) and halve the atan2 result. Accumulating raw (cos θ, sin θ) breaks at the 0°/180° seam — this was the root cause of the v1 Phase-4 regression.

2. Invariants

A labelled corner C at (i, j) is kept iff every one of these holds at convergence:

1. Axis membership. Both C.axes[0] and C.axes[1] are within cluster_tol_deg of the two global grid-direction peaks {Θ₀, Θ₁}, each axis matching a different peak.
2. Cluster label = axis-slot. cluster(C) = 0 iff C.axes[0] is closer to Θ₀; otherwise 1. Binary, per-corner.
3. Parity. cluster(C) ≡ (i + j) mod 2 (modulo a global sign fixed by the seed quad).
4. Edge orientation along the corner’s axes. For every in-graph edge C ↔ N with vector v = N.pos − C.pos, atan2(v) mod π is within edge_axis_tol_deg of exactly one of C.axes[*] AND of exactly one of N.axes[*]. (No ±π/4 offset — edges align with axes, not diagonals.)
5. Edge axis-slot swap. Let ax_C ∈ {0, 1} be the slot of C matching the edge, and ax_N the slot of N. Require ax_C ≠ ax_N.
6. Cell-size consistency. |v| ∈ [1 − step_tol, 1 + step_tol] × s.
7. Line collinearity. For every labelled row / column through C with ≥ line_min_members members, C’s perpendicular residual to the fitted line is ≤ line_tol × s. Projective-line fits use a looser tolerance to absorb mild lens distortion.
8. Local-H consistency. A local 4-point homography from 4 non-collinear labelled neighbors predicts C’s pixel position with residual ≤ local_h_tol × s.
9. No ambiguity at attachment. When admitted via prediction, no other strong corner lies within attach_ambiguity_factor × the attachment distance.

A corner failing any invariant is blacklisted. A blacklist update restarts seed → grow → validate with the blacklist excluded; the loop is capped at max_validation_iters.

3. Pipeline

Corner[]
 → 1. Pre-filter: strength + fit-quality + axes-validity
 → 2. Global axes Θ₀, Θ₁  (axes-histogram + double-angle 2-means)
 → 3. Per-corner cluster label (canonical / swapped)
 → 4. Global cell size s   (specialized cross-cluster NN)
 → 5. Seed: 2×2 quad satisfying invariants 1-6 on all 4 edges
 → 6. Grow: BFS attaches one corner per step, enforcing invariants 1-6, 9
 → 7. Validate: invariants 7, 8 across the labelled set; attribution +
       blacklist; loop back to Stage 5 if blacklist grew
 → 8. Recall boosters: line extrapolation, gap fill, component merge,
       weak-cluster rescue (each preserves the precision contract)
 → 9. Output: Detection (single component) or None

Stages 5-7 are the precision core: any corner labelled at the end of Stage 7 has passed every invariant. Stage 8 only adds corners; it never relaxes invariants.

Stage 1 — Pre-filter

Drop corner c if:

• c.strength < min_corner_strength (default 0.0, off);
• c.contrast > 0 and c.fit_rms > max_fit_rms_ratio × c.contrast (default 0.5);
• both axes[*].sigma == π (no axis information).

Stage 2 — Global grid directions

Build a circular histogram on [0, π) with num_bins bins. For each corner c and each axis axes[k], add a vote at axes[k].angle mod π weighted by c.strength / (1 + axes[k].sigma). Smooth with [1, 4, 6, 4, 1] / 16. Find local maxima. Refine the two best peaks via 2-means in double-angle space ((cos 2θ, sin 2θ)); halve the mean atan2 to recover (Θ₀, Θ₁) ∈ [0, π).

Why double-angle. Axes are undirected — θ and θ + π are the same direction. Naïve circular mean over raw (cos θ, sin θ) produces zero when votes straddle the 0°/π seam. Doubling the angle wraps both halves together; the inverse halving gives a stable mean.

Stage 3 — Cluster assignment

For each survivor, score the two possible 2×2 axis assignments:

• Canonical (cost d(axes[0], Θ₀) + d(axes[1], Θ₁))
• Swapped (cost d(axes[0], Θ₁) + d(axes[1], Θ₀))

Pick the cheaper. Drop if the worse axis exceeds cluster_tol_deg. Otherwise label the corner Canonical (cluster = 0) or Swapped (cluster = 1).

Stage 4 — Global cell size

Specialized estimator: nearest-neighbor distances across cluster boundaries (canonical → swapped). The cross-cluster constraint suppresses intra-marker noise on ChArUco scenes — see the cell-size gotcha below.

Stage 5 — Seed

Find the best 2×2 quad A, B, C, D (A canonical, B swapped, C swapped, D canonical) satisfying invariants 4-6 on all 4 edges:

1. Iterate canonical corners by descending strength.
2. For each candidate A, kNN-search ~32 swapped corners. Classify each neighbor by which of A.axes[0] or A.axes[1] the chord is closer to, within seed_axis_tol_deg.
3. For the shortest few (B, C) pairs, require |AB| ≈ |AC| within seed_edge_tol. Predict D = A + (B − A) + (C − A). Find the nearest canonical corner within seed_close_tol × avg_edge of the prediction.
4. Verify all 4 edges pass invariants. First quad wins.
5. Cell size s is the mean of the 4 seed edge lengths — output, not input.

If no quad passes, retry with every tolerance widened by 1.5×.

Stage 6 — Growth

BFS over the (i, j) boundary. For each unlabelled boundary position:

1. Compute the required cluster k = (i + j) mod 2 (XOR with the seed’s parity offset).
2. Predict the pixel position from labelled neighbors via a local affine / 4-point homography.
3. Search strong corners with cluster == k whose axes match the global centers and whose distance to the prediction is ≤ attach_search_rel × s.
4. If 0 candidates → Hole. If ≥ 2 within attach_ambiguity_factor × the nearest → Ambiguous (no blacklist; the candidate may be valid at another position).
5. For the unique nearest, verify the induced edges to all labelled neighbors satisfy invariants 4-6. If any fails → Hole.
6. Otherwise label and push its cardinal unlabelled neighbors.

Stage 7 — Validate (precision pass)

Two independent geometric checks across the labelled set:

• 7a. Line collinearity. For each row / column with ≥ line_min_members members, fit both a straight TLS line and (when ≥ 4 members) a projective-line. Pick the better fit by χ². Flag members with perpendicular residual exceeding the per-fit tolerance.
• 7b. Local-H residual. For each labelled corner with ≥ 4 non-collinear labelled neighbors, fit a 4-point local homography and predict the corner’s pixel position. Flag if the residual exceeds local_h_tol × s.

Attribution rules (from spec §5.7c) decide who to blacklist:

1. Flagged in ≥ 2 lines → outlier.
2. Local-H flagged AND ≥ 1 line flag → outlier.
3. Local-H flagged but no line flag, with a base neighbor flagged in a line → blame the base instead.
4. Otherwise → defer (no blacklist this iteration).

If any new blacklist entries appeared, restart from Stage 5 with the blacklist excluded. Loop is capped at max_validation_iters.

Stage 8 — Recall boosters

Each booster strictly adds corners; none relax invariants 4-6, 9.

• 8a. Line extrapolation. Extend each labelled row / column one corner at a time along the projective-line fit. Each candidate must pass the full attachment check.
• 8b. Interior gap fill. For each unlabelled (i, j) strictly inside the bbox with ≥ 3 labelled neighbors, attempt the standard attachment.
• 8c. Component merge. Re-run the precision core with all currently labelled corners excluded; if a second seed grows into a disjoint component, align its (i, j) frame via local homography and merge.
• 8d. Weak-cluster rescue. Corners dropped in Stage 3 with max_d ∈ (cluster_tol, weak_cluster_tol] become eligible attachment candidates in 8a-8c, with halved search radius and the full invariant stack still enforced.

A final Stage-7 pass runs over the enlarged labelled set so the precision contract holds end-to-end.

4. Why precision is by construction

The design constraint “wrong (i, j) labels are unrecoverable” is what shapes every non-obvious choice in the pipeline. Two examples:

Cell size is an OUTPUT, not an input. A naïve detector estimates a global cell size first, then uses it to set the search window during seed finding. On ChArUco scenes the nearest-neighbor histogram is bimodal (marker-internal pairs at ~10 px vs true board pairs at ~55 px); even multimodal mean-shift can pick the wrong mode. The detector instead finds a 4-corner quad that matches itself in edge lengths and reports the mean of those 4 edge lengths as s. The window is whatever the seed itself agrees on — there is no global scalar to mispick. See crates/calib-targets-chessboard/src/seed.rs and the Cell-size gotcha in CLAUDE.md.

Edges align with axes, not diagonals. Some chessboard detectors model ChESS corners as having a single orientation θ and check that grid edges align with θ ± π/4. It reads the two axes directly and requires edges to align with one axis (per invariant 4). The edge check then becomes “does the edge match exactly one of the two axes within tolerance?” — robust to the axis-swap parity that ChESS X-junctions exhibit at adjacent corners. Skipping the ±π/4 offset removes a single-orientation dependence that the workspace already discarded (Corner::orientation was removed entirely).

Multi-component scenes are first-class. The same precision contract applies to Detector::detect_all, which peels off disconnected components of the same physical board (the typical ChArUco case where markers interrupt grid contiguity). Each component is rebased to its own (0, 0) origin; alignment to a global frame is the caller’s job.

We explicitly do NOT support scenes containing multiple separate physical boards. One target per frame is the contract.

5. Failure modes

When detection fails or returns fewer corners than expected, identify the stage from the DebugFrame (see §7) and consult this table.

The one unrecovered frame in our regression dataset is a very-bad-light capture whose Stage-2 clustering never converges. It is flagged as excluded in docs/120issues.txt.

6. Parameters

DetectorParams is #[non_exhaustive]; build with Default::default() and overwrite specific fields, or call DetectorParams::sweep_default() for a 3-config preset (default, tighter, looser) suitable for detect_chessboard_best-style sweeps.

All spatial tolerances are multiplicative with respect to s — the pipeline is scale-invariant once s is known.

7. Debugging via DebugFrame

Detector::detect_debug and detect_all_debug return a DebugFrame per detection attempt. Key fields:

• schema: u32 — DEBUG_FRAME_SCHEMA = 1 today; bumped on shape change. Overlay scripts gate on this.
• input_count, grid_directions, cell_size, seed: Option<[usize; 4]> — global outputs of stages 1-5.
• iterations: Vec<IterationTrace> — one entry per blacklist-retry pass. Each carries iter, labelled_count, new_blacklist, converged.
• boosters: Option<BoosterResult> — additions from Stage 8.
• detection: Option<Detection> — final output (None if min-corners gate failed or no seed).
• corners: Vec<CornerAug> — every input corner with its terminal stage: Raw, Strong, NoCluster, Clustered, AttachmentAmbiguous, AttachmentFailedInvariants, Labeled { at, local_h_residual_px }, LabeledThenBlacklisted { at, reason }.

Render overlays with crates/calib-targets-py/examples/overlay_chessboard.py; it warns once per observed schema mismatch.

For compact telemetry, prefer Detector::detect_instrumented returning (Detection, StageCounts) where StageCounts summarises the per-stage corner survivorship in a handful of integers.

8. Quickstart

use calib_targets_chessboard::{Detector, DetectorParams};
use calib_targets_core::Corner;

fn detect(corners: &[Corner]) {
    let params = DetectorParams::default();
    let det = Detector::new(params);
    if let Some(d) = det.detect(corners) {
        println!(
            "labelled {} corners; cell ≈ {:.1} px",
            d.target.corners.len(),
            d.cell_size
        );
        for lc in &d.target.corners {
            let g = lc.grid.unwrap();
            println!("(i, j) = ({}, {}) at ({:.1}, {:.1})", g.i, g.j, lc.position.x, lc.position.y);
        }
    }
}

fn detect_multi(corners: &[Corner]) {
    let det = Detector::new(DetectorParams::default());
    for (k, comp) in det.detect_all(corners).iter().enumerate() {
        println!(
            "component {k}: {} corners (strong_indices: {:?})",
            comp.target.corners.len(),
            &comp.strong_indices[..comp.strong_indices.len().min(5)]
        );
    }
}

The full driver — including ChESS corner detection, JSON debug-frame output, and a 120-snap dataset sweep — lives in crates/calib-targets-chessboard/examples/run_dataset.rs. A single- image variant (examples/debug_single.rs) + the driver script scripts/chessboard_regression_overlays.sh emit per-image overlays for the broader testdata/ regression set and are wired into a #[test] harness at crates/calib-targets-chessboard/tests/testdata_regression.rs.

9. Open questions

Tracked in spec §10:

• Degenerate axes (one axis with sigma = π) — current: drop the corner. Could a single-axis attachment pathway recover some recall?
• Seed retry policy — current: try the next-best seed. A blacklist-and-research scheme might catch genuinely-bad seeds earlier.
• Distortion-curved lines — current: projective fit when ≥ 4 members, straight fit fallback. A true polynomial fit could absorb more distortion at the cost of false-negative risk.
• Multi-seed growth — current: single seed only, multi-component is a post-hoc booster. A first-class multi-seed grower could reduce the Stage-8 dependency.
• Caller-provided cell-size hint — current: optional, mostly ignored. When could it tighten Stages 5-6 without compromising precision?

Contributions welcome.

calib-targets-aruco

calib-targets-aruco provides embedded ArUco/AprilTag-style dictionaries and decoding on rectified grids. It does not detect quads or perform image rectification by itself.

Rectified grid used for ArUco/AprilTag decoding.

Current API surface

• Dictionary: built-in dictionary metadata and packed codes.
• Matcher: brute-force matching against a dictionary with rotation handling.
• ScanDecodeConfig: how to scan a rectified grid (border size, inset, polarity).
• scan_decode_markers: read and decode markers from rectified cells.
• scan_decode_markers_in_cells: decode markers from per-cell image quads (no full warp).
• decode_marker_in_cell: decode a single marker inside one square cell.

The crate expects a rectified view where each chessboard square is approximately px_per_square pixels and where cell indices align with the board grid.

Decoding paths

There are two supported scanning modes:

• Rectified grid scan (scan_decode_markers): build a rectified image first and scan a regular grid.
• Per-cell scan (scan_decode_markers_in_cells): pass a list of per-cell quads and decode each cell directly.

Per-cell scanning avoids building the full rectified image and is easy to parallelize across cells.

Scan configuration

ScanDecodeConfig controls how bit sampling and thresholding behave:

• border_bits: number of black border cells (OpenCV typically uses 1).
• marker_size_rel: marker size relative to the square size (ChArUco uses < 1.0).
• inset_frac: extra inset inside the marker to avoid edge blur.
• min_border_score: minimum fraction of border bits that must be black.
• dedup_by_id: keep only the best detection per marker id.

If decoding is too sparse on real images, reduce inset_frac slightly and re-run.

Conventions

• Marker bits are packed row-major with black = 1.
• Match::rotation is in 0..=3 such that observed == rotate(dict_code, rotation).
• border_bits matches the OpenCV definition (typically 1).

Status

Decoding is implemented and stable for rectified grids, but quad detection and image-space marker detection are deliberately out of scope. The roadmap chapter details planned improvements and API refinements.

For deeper tuning and sampling details, see ArUco Decoding Details.

ArUco Decoding Details

This chapter expands on the marker decoding path in calib-targets-aruco. The decoder is grid-first: it samples expected square cells and reads bits in rectified space (or per-cell quads).

Per-cell decoding

scan_decode_markers_in_cells reads marker bits in their own cells given an existing grid of square corners, without warping the full image. ChArUco detection drives this path: only valid grid cells are decoded, and the per-cell work parallelises trivially.

Sampling model

• Bits are sampled on a regular grid inside the marker area.
• The marker area is defined by marker_size_rel, with an extra inset from inset_frac.
• A per-marker threshold (Otsu) is computed from sampled intensities.

Tuning knobs

• inset_frac controls how far inside the marker area bits are sampled. Lower values capture more of the marker; higher values are more robust to thin black borders bleeding into the bit grid.
• min_border_score is the minimum “frame looks like a marker border” score required to accept a cell. Higher values reject ambiguous cells.
• dedup_by_id collapses repeated decodes of the same dictionary ID across cells.
• marker_size_rel is the marker side relative to the enclosing chessboard cell and must match the physical board spec.

calib-targets-charuco

calib-targets-charuco combines chessboard detection with ArUco decoding to detect ChArUco boards. ChArUco dictionaries and board layouts are fully compatible with OpenCV’s aruco/charuco implementation. The flow is grid-first:

ChArUco detection overlay with assigned corner IDs.

1. Detect a chessboard grid from ChESS corners.
2. Build per-cell quads from the detected grid.
3. Decode markers per cell (no full-image warp).
4. Align marker detections to a board specification and assign corner IDs.

Board specification

• CharucoBoardSpec describes the board geometry:
  • rows, cols are square counts (not inner corners).
  • cell_size is the physical square size.
  • marker_size_rel is the marker size relative to a square.
  • dictionary selects the marker dictionary.
  • marker_layout defines the placement scheme.
• CharucoBoard validates and precomputes marker placement.

Detector

• CharucoParams::for_board provides a reasonable default configuration.
• CharucoDetector::detect returns a CharucoDetectionResult with:
  • detection: labeled corners with ChArUco IDs, filtered to marker-supported corners.
  • markers: decoded marker detections in rectified grid coordinates (with optional corners_img).
  • alignment: grid alignment from detected grid coordinates into board coordinates.

Per-cell decoding

The detector decodes markers per grid cell. This avoids building a full rectified image and keeps the work proportional to the number of valid squares. If you need a full rectified image for visualization, use the rectification helpers in calib-targets-chessboard on a detected grid.

Alignment and refinement

Alignment maps decoded marker IDs to board positions using a small set of grid transforms and a translation vote. Once an alignment is found, the detector re-decodes markers at their expected cell locations and re-solves the alignment to filter out inconsistencies.

This two-stage approach helps reject spurious markers while keeping the final corner IDs consistent.

Tuning notes

• scan.inset_frac trades off robustness vs. sensitivity. The defaults in for_board use a slightly smaller inset (0.06) to improve real-image decoding.
• min_marker_inliers controls how many aligned markers are required to accept a detection.

Status

The current implementation focuses on the OpenCV-style layout and is intentionally conservative about alignment. Extensions for more layouts and improved robustness are planned (see the roadmap).

For alignment details, see ChArUco Alignment and Refinement.

ChArUco Alignment

calib-targets-charuco aligns decoded marker IDs to a board layout and assigns ChArUco corner IDs. Alignment is discrete and fast: it tries a small set of grid transforms and selects the translation with the strongest inlier support.

Alignment pass

• Each decoded marker votes for a board translation under each candidate transform.
• The best translation wins (ties broken by inlier count).
• Inliers are the markers whose (sx, sy) map exactly to the expected board cell for their ID.

Inlier filtering

After alignment is chosen, the detector keeps only inlier markers and assigns ChArUco corner IDs based on the aligned grid coordinates. The final alignment in the result is a GridAlignment that maps detected grid coordinates into board coordinates.

calib-targets-puzzleboard

calib-targets-puzzleboard detects PuzzleBoard targets: checkerboards whose interior edge midpoints carry binary dots. The dots identify the board position inside a 501 x 501 master pattern, so a visible fragment can still produce absolute corner IDs and object-space coordinates.

PuzzleBoard is based on Stelldinger 2024, arXiv:2409.20127.

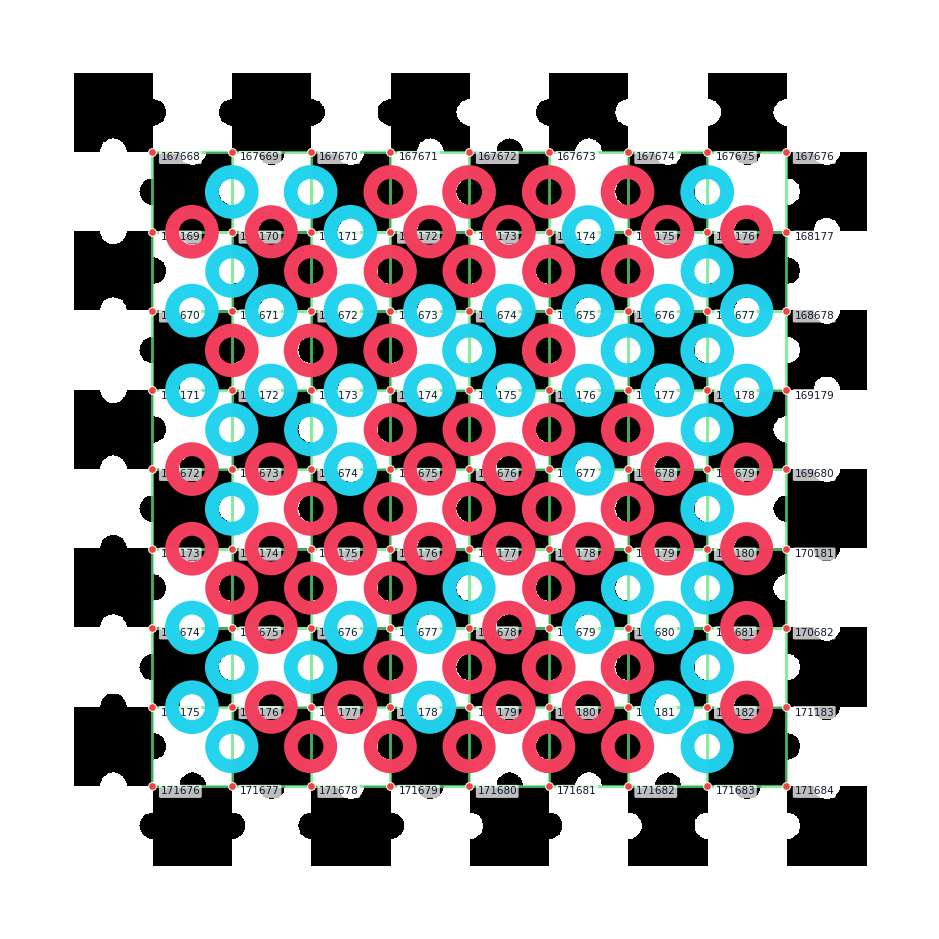

Target Model

PuzzleBoardSpec describes the printable board:

• rows, cols: square counts, not inner-corner counts.
• cell_size: physical square size.
• origin_row, origin_col: top-left square in the 501 x 501 master pattern.

Detected inner corners are returned as LabeledCorner values with:

• grid: absolute master corner coordinates (i, j).
• id: j * 501 + i.
• target_position: (i * cell_size, j * cell_size).

Bit Layout

The board uses two embedded cyclic maps:

• map A, shape (3, 167), for horizontal interior edges.
• map B, shape (167, 3), for vertical interior edges.

Dots encode bits directly: white dot = 0, black dot = 1.

corner (i,j) ---- A(j,i) ---- corner (i+1,j)
     |                            |
   B(j,i)                      B(j,i+1)
     |                            |
corner (i,j+1) -- A(j+1,i) -- corner (i+1,j+1)

The committed blobs are src/data/map_a.bin and src/data/map_b.bin. generate-puzzleboard-code-maps and verify-puzzleboard-code-maps are kept as repo tools so the runtime detector does no map construction.

Detection Pipeline

The flow is grid-first:

1. Run ChESS corner detection.
2. Assemble one or more chessboard grid components.
3. Sample every visible interior edge midpoint and estimate a bit confidence.
4. Drop bits below decode.min_bit_confidence.
5. Decode against the master maps over all D4 rotations/reflections.
6. Assign absolute IDs and target-space positions to inlier corners.

The default decode.min_window is 4, meaning the detector requires enough edge samples for a 4 x 4 square fragment after confidence filtering.

Rust Facade Example

use calib_targets::{detect, puzzleboard::{PuzzleBoardParams, PuzzleBoardSpec}};

fn main() -> Result<(), Box<dyn std::error::Error>> {
    let img = image::open("testdata/puzzleboard_small.png")?.to_luma8();
    let spec = PuzzleBoardSpec::new(10, 10, 12.0)?;
    let params = PuzzleBoardParams::for_board(&spec);
    let result = detect::detect_puzzleboard(&img, &params)?;
    println!("{} corners", result.detection.corners.len());
    Ok(())
}

For threshold-sensitive images, use:

#![allow(unused)]
fn main() {
use calib_targets::{detect, puzzleboard::{PuzzleBoardParams, PuzzleBoardSpec}};
let img = image::GrayImage::new(1, 1);
fn run(img: &image::GrayImage) -> Result<(), Box<dyn std::error::Error>> {
let spec = PuzzleBoardSpec::new(10, 10, 12.0)?;
let configs = PuzzleBoardParams::sweep_for_board(&spec);
let result = detect::detect_puzzleboard_best(img, &configs)?;
let _ = result;
Ok(()) }
}

Search Modes

The default PuzzleBoardSearchMode::Full scans all 501 × 501 × 8 (D4, origin) candidates against the full master code. When the caller already knows which board they printed, PuzzleBoardSearchMode::FixedBoard matches observations directly against that declared board’s own bit pattern under 8 × (rows+1)² candidate shifts:

#![allow(unused)]
fn main() {
use calib_targets::{detect, puzzleboard::{PuzzleBoardParams, PuzzleBoardSearchMode, PuzzleBoardSpec}};
let img = image::GrayImage::new(1, 1);
fn run(img: &image::GrayImage) -> Result<(), Box<dyn std::error::Error>> {
let spec = PuzzleBoardSpec::new(50, 50, 1.0)?;
let mut params = PuzzleBoardParams::for_board(&spec);
params.decode.search_mode = PuzzleBoardSearchMode::FixedBoard;
let _ = detect::detect_puzzleboard(img, &params)?;
Ok(()) }
}

Partial-view guarantee: for a given printed board, any subset of its corners decodes to the same master IDs a full-view decode would produce. This applies equally to single-camera captures that only frame part of a large board and to multi-camera rigs where each camera sees a different fragment — in both cases overlapping corners across frames or cameras share master IDs without further stitching.

The decoder’s per-view master origin is otherwise not fixed — it shifts with which print-corner the chessboard stage picks as local (0, 0), which depends on what the camera sees. FixedBoard sidesteps that entirely by scoring against the board rather than against the full master.

FixedBoard runs 8 × (rows + 1)² × N operations, where N is the number of confidence-filtered edge observations. At typical edge counts even a 50 × 50 board decodes in well under 10 ms natively. The default stays Full; switch via params.decode.search_mode as shown.

Printable Example

Canonical sample specs live in:

• testdata/printable/puzzleboard_small.json
• testdata/printable/puzzleboard_mid.json

Generate one from the workspace root:

cargo run -p calib-targets --example generate_printable -- \
  testdata/printable/puzzleboard_small.json \
  tmpdata/printable/puzzleboard_small

Print the SVG at 100 percent scale. The generated PNG is intended for previews and regression tests.

calib-targets-marker

calib-targets-marker targets a checkerboard marker board: a chessboard grid with three circular markers near the center. The detector is grid-first and works with partial boards.

Detected circle markers and aligned grid overlay.

Detection pipeline

1. Chessboard detection: run calib-targets-chessboard to obtain grid-labeled corners (partial boards are allowed).
2. Per-cell circle scoring: for every valid square cell, warp the cell to a canonical patch and score a circle by comparing a disk sample to an annular ring.
3. Candidate filtering: keep the strongest circle candidates per polarity.
4. Circle matching: match candidates to the expected layout (cell coordinates + polarity).
5. Grid alignment estimation: derive a dihedral transform + translation from detected grid coordinates to board coordinates when enough circles agree.

Key types

• MarkerBoardDetector: main entry point.
• MarkerBoardSpec: rows/cols plus the three expected circles (cell coordinate + polarity).
• MarkerBoardParams: layout + chessboard/grid graph params + circle score + match settings.
• MarkerBoardDetectionResult:
  • detection: TargetDetection labeled as CheckerboardMarker.
  • circle_candidates: scored circles per cell.
  • circle_matches: matched circles (with offsets).
  • alignment: optional GridAlignment from detected grid coords to board coords.
  • alignment_inliers: number of circle matches used for the alignment.

Parameters

MarkerBoardSpec defines the board and marker placement:

• rows, cols: inner corner counts.
• cell_size: optional square size in your world units (when set, target_position is populated).
• circles: three MarkerCircleSpec entries with cell (top-left corner indices) and polarity.

MarkerBoardParams configures detection:

• chessboard: ChessboardParams (defaults to completeness_threshold = 0.05 to allow partial boards).
• grid_graph: GridGraphParams for neighbor search constraints.
• circle_score: per-cell circle scoring parameters.
• match_params: candidate filtering and matching thresholds.
• roi_cells: optional cell ROI [i0, j0, i1, j1].

CircleScoreParams controls scoring:

• patch_size: canonical square size in pixels.
• diameter_frac: circle diameter relative to the square.
• ring_thickness_frac: ring thickness relative to circle radius.
• ring_radius_mul: ring radius relative to circle radius.
• min_contrast: minimum accepted disk-vs-ring contrast.
• samples: samples per ring for averaging.
• center_search_px: small pixel search around the cell center.

CircleMatchParams controls matching:

• max_candidates_per_polarity: top-N candidates to keep per polarity.
• max_distance_cells: optional maximum distance for a match.
• min_offset_inliers: minimum agreeing circles to return an alignment.

Notes

• Cell coordinates (i, j) refer to square cells, expressed by the top-left corner indices. The cell center is at (i + 0.5, j + 0.5).
• alignment maps detected grid coordinates into board coordinates using a dihedral transform and translation.

calib-targets-print

calib-targets-print is the dedicated crate for printable target generation. The same functionality is also exposed through the published calib-targets facade as calib_targets::printable.

This page is the canonical guide for printable-target generation across the published Rust crates, the repo-local CLI, and the Python bindings.

What it generates

The input is one canonical JSON-backed document with:

• schema_version
• target: chessboard, charuco, marker_board, or puzzle_board
• page: size, orientation, and margin in millimeters
• render: debug overlay toggle and PNG DPI

Generation writes one output bundle:

• <stem>.json
• <stem>.svg
• <stem>.png

The normalized .json file records the exact document that was rendered. SVG and PNG are emitted from the same internal scene description, so they describe the same board geometry.

All physical dimensions are expressed in millimeters. The board is centered in the printable area, and generation fails if the chosen page and margins do not leave enough room.

Concrete example

testdata/printable/charuco_a4.json is the canonical ChArUco example:

{
  "schema_version": 1,
  "target": {
    "kind": "charuco",
    "rows": 5,
    "cols": 7,
    "square_size_mm": 20.0,
    "marker_size_rel": 0.75,
    "dictionary": "DICT_4X4_50",
    "marker_layout": "opencv_charuco",
    "border_bits": 1
  },
  "page": {
    "size": {
      "kind": "a4"
    },
    "orientation": "portrait",
    "margin_mm": 10.0
  },
  "render": {
    "debug_annotations": false,
    "png_dpi": 300
  }
}

Matching examples also exist for chessboard and marker-board targets:

• testdata/printable/chessboard_a4.json
• testdata/printable/marker_board_a4.json
• testdata/printable/puzzleboard_small.json
• testdata/printable/puzzleboard_mid.json

Rust quickstart

If you are using the published Rust crates today, you can either depend on the dedicated calib-targets-print crate directly or use the calib-targets facade re-export. The facade path stays shortest when you also want detector APIs:

use calib_targets::printable::{write_target_bundle, PrintableTargetDocument};

fn main() -> Result<(), Box<dyn std::error::Error>> {
    let doc = PrintableTargetDocument::load_json("testdata/printable/charuco_a4.json")?;
    let written = write_target_bundle(&doc, "tmpdata/printable/charuco_a4")?;

    println!("{}", written.json_path.display());
    println!("{}", written.svg_path.display());
    println!("{}", written.png_path.display());
    Ok(())
}

The same flow is available in the workspace example:

cargo run -p calib-targets --example generate_printable -- \
  testdata/printable/charuco_a4.json \
  tmpdata/printable/charuco_a4

The underlying implementation crate is the published calib-targets-print crate; within this workspace it lives at crates/calib-targets-print.

CLI quickstart

The calib-targets CLI ships with the facade crate and the Python package: cargo install calib-targets provides the Rust binary and pip install calib-targets installs the same command as a Python console script. Both use the same subcommand taxonomy.

List the built-in ArUco dictionaries:

calib-targets list-dictionaries

One-step generation (flags → JSON + SVG + PNG bundle):

calib-targets gen chessboard \
  --out-stem tmpdata/printable/chessboard \
  --inner-rows 6 --inner-cols 8 --square-size-mm 20

calib-targets gen charuco \
  --out-stem tmpdata/printable/charuco_a4 \
  --rows 5 --cols 7 --square-size-mm 20 \
  --marker-size-rel 0.75 --dictionary DICT_4X4_50

calib-targets gen puzzleboard \
  --out-stem tmpdata/printable/puzzle \
  --rows 8 --cols 10 --square-size-mm 15

Two-step init → validate → generate for reviewable / committable specs:

calib-targets init charuco \
  --out tmpdata/printable/charuco_a4.json \
  --rows 5 --cols 7 --square-size-mm 20 \
  --marker-size-rel 0.75 --dictionary DICT_4X4_50

calib-targets validate --spec tmpdata/printable/charuco_a4.json

calib-targets generate \
  --spec tmpdata/printable/charuco_a4.json \
  --out-stem tmpdata/printable/charuco_a4

validate prints valid <target-kind> on success and exits non-zero if the spec fails printable validation.

Both init and gen support all four target families: chessboard, charuco, puzzleboard, marker-board. Page and render options (--page-size, --orientation, --margin-mm, --png-dpi, --debug-annotations) are shared across every subcommand.

Python quickstart

The Python bindings expose the same printable document model and write API:

.venv/bin/python crates/calib-targets-py/examples/generate_printable.py \
  tmpdata/printable/charuco_a4_py

That example constructs a small ChArUco document in Python and writes the same three-file bundle.

Printing guidance

For a physically accurate calibration target:

• Print at 100% scale or “actual size”.
• Disable “fit to page”, “scale to fit”, or similar printer-driver options.
• Prefer the generated SVG when sending the target to a print workflow that preserves vector geometry.
• After printing, measure at least one known square width with a ruler or caliper and confirm it matches square_size_mm.
• If the printed size is wrong, fix the print dialog or driver scaling and reprint instead of compensating in calibration code.

Choosing an entry point

• Use calib_targets::printable when you want the published Rust facade crate.
• Use calib-targets-print when you want the dedicated published printable-target crate.
• Use the calib-targets CLI (cargo install calib-targets or pip install calib-targets) when you want a command-line init/render tool.
• Use the Python bindings when your downstream workflow is already in Python.

calib-targets (facade)

The calib-targets crate is the unified entry point for the workspace. It re-exports the lower-level crates and provides optional end-to-end helpers in calib_targets::detect (feature image, enabled by default).

Facade examples cover detection and rectification workflows.

Single-config detection

Each detect_* function takes a single params struct. The chessboard detector uses the workspace’s default_chess_config() for ChESS corner detection automatically; ChArUco / PuzzleBoard / marker board params embed a DetectorParams under params.chessboard.

#![allow(unused)]
fn main() {
use calib_targets::detect;
use calib_targets::chessboard::DetectorParams;

let img = image::open("board.png").unwrap().to_luma8();
let params = DetectorParams::default();
let result = detect::detect_chessboard(&img, &params);
}

Multi-config sweep

For challenging images (uneven lighting, Scheimpflug optics), try multiple parameter configs and keep the best result:

#![allow(unused)]
fn main() {
use calib_targets::detect;
use calib_targets::charuco::{CharucoBoardSpec, CharucoParams};
use calib_targets::aruco::builtins;

let img = image::open("charuco.png").unwrap().to_luma8();
let board = CharucoBoardSpec {
    rows: 22, cols: 22, cell_size: 1.0,
    marker_size_rel: 0.75,
    dictionary: builtins::DICT_4X4_1000,
    marker_layout: calib_targets::charuco::MarkerLayout::OpenCvCharuco,
};
let configs = CharucoParams::sweep_for_board(&board);
let result = detect::detect_charuco_best(&img, &configs);
}

sweep_for_board() returns three configs with different ChESS thresholds (default, high, low). detect_charuco_best tries each and returns the result with the most markers (then most corners).

PuzzleBoard follows the same facade shape:

#![allow(unused)]
fn main() {
use calib_targets::detect;
use calib_targets::puzzleboard::{PuzzleBoardParams, PuzzleBoardSpec};

let img = image::open("puzzleboard.png").unwrap().to_luma8();
let spec = PuzzleBoardSpec::new(10, 10, 12.0).unwrap();
let configs = PuzzleBoardParams::sweep_for_board(&spec);
let result = detect::detect_puzzleboard_best(&img, &configs);
}

Features

• image (default): enables calib_targets::detect.
• tracing: enables tracing output across the subcrates.

Examples

Examples live under crates/*/examples/ and are built per crate. Many examples accept a JSON config file (defaults point to testdata/ or tmpdata/), while the facade examples under calib-targets take an image path directly.

To run an example from the workspace root:

cargo run -p calib-targets-chessboard --example chessboard -- testdata/chessboard_config.json

Python examples live under crates/calib-targets-py/examples/ and use the calib_targets module. After maturin develop, run them with an image path, for example:

python crates/calib-targets-py/examples/detect_charuco.py testdata/small2.png
python crates/calib-targets-py/examples/detect_puzzleboard.py testdata/puzzleboard_small.png

See the sub-chapters for what each example produces and how to interpret the outputs.

Chessboard Detection Example

Reference: crates/calib-targets/examples/detect_chessboard.rs — end-to-end image-in / detection-out using the facade’s default chessboard configuration.

Example output overlay for chessboard detection on testdata/mid.png.

Quick run

cargo run --release -p calib-targets --example detect_chessboard -- testdata/mid.png

The example:

1. Decodes the image with image::open(...).to_luma8().
2. Calls calib_targets::detect::detect_chessboard(&img, &DetectorParams::default()).
3. Prints the detected Detection — labelled corner count, cell size, the two grid-direction angles, and every (i, j) → pixel_position pair.

If detection fails (None), rerun with the _best helper, which tries three pre-tuned configs (default + tighter + looser) and returns whichever produced the most labelled corners:

cargo run --release -p calib-targets --example detect_chessboard_best -- testdata/mid.png

Instrumentation

calib_targets::detect::detect_chessboard_debug returns a DebugFrame with the full per-stage trace — every input corner’s terminal stage, per-validation-iteration labelled counts + blacklist, booster deltas, and the final detection. This is the entry point for everything the book’s overlay tooling and the testdata regression harness consume.

cargo run --release -p calib-targets-chessboard \
  --example debug_single --features dataset -- \
  --image testdata/mid.png \
  --out-default /tmp/mid_default.json

Then render an overlay:

uv run python crates/calib-targets-py/examples/overlay_chessboard.py \
  --single-image testdata/mid.png \
  --frame-json /tmp/mid_default.json \
  --out /tmp/mid_default.png --tag default

The overlay draws labelled corners in gold with their (i, j) text, blue/green grid edges, cluster-direction tangent lines, and the faint grey input-corner cloud as context.

Direct crate-level usage

If you need control over the ChESS corner front-end (e.g., custom ChessConfig), bypass the facade:

#![allow(unused)]
fn main() {
use calib_targets::detect::{default_chess_config, detect_corners};
use calib_targets_chessboard::{Detector, DetectorParams};
use image::ImageReader;

let img = ImageReader::open("board.png").unwrap().decode().unwrap().to_luma8();
let chess_cfg = default_chess_config();
let corners = detect_corners(&img, &chess_cfg);

let params = DetectorParams::default();
let detector = Detector::new(params);

if let Some(detection) = detector.detect(&corners) {
    println!(
        "{} corners, cell = {:.1} px, grid directions = {:?}",
        detection.target.corners.len(),
        detection.cell_size,
        detection.grid_directions,
    );
}
}

Detector::detect_all(&corners) returns every same-board component found in the scene (see the chessboard chapter for the multi-component contract).

Global Rectification Example

File: crates/calib-targets-chessboard/examples/rectify_global.rs

This example detects a chessboard and computes a single global homography to produce a rectified board view. The output includes:

Global rectification output from the small test image.

• A rectified grayscale image.
• A JSON report with homography matrices and grid bounds.

The code defaults to tmpdata/rectify_config.json, but a ready-made config exists in testdata/rectify_config.json (input: testdata/small.png, rectified output: tmpdata/rectified_small.png, report: tmpdata/charuco_report_small.json).

Run it with:

cargo run -p calib-targets-chessboard --example rectify_global -- testdata/rectify_config.json

If rectification succeeds, the rectified image is written to tmpdata/rectified.png unless overridden in the config.

Mesh Rectification Example

File: crates/calib-targets-aruco/examples/rectify_mesh.rs

This example detects a chessboard, performs per-cell mesh rectification, and scans the rectified grid for ArUco markers. It writes:

Per-cell mesh rectification output from the small test image.

• A mesh-rectified grayscale image.
• A JSON report with rectification info and marker detections.

The code defaults to testdata/rectify_mesh_config_small0.json, and that config is a good starting point (input: testdata/small0.png, mesh output: tmpdata/mesh_rectified_small0.png, report: tmpdata/rectify_mesh_report_small0.json).

Run it with:

cargo run -p calib-targets-aruco --example rectify_mesh -- testdata/rectify_mesh_config_small0.json

This is a good reference for the full grid -> rectification -> marker scan pipeline.

Data and Tools

This repository includes data and scripts that support testing and debugging.

Data folders

• testdata/: sample images and JSON configs used by examples and tests.

Tools

The tools/ folder contains helper scripts for visualization and synthetic data generation, for example:

• Overlay plotting for chessboard, marker, and ChArUco outputs.
• Synthetic marker target generation.
• Dictionary utilities.

These tools are optional but useful when debugging or extending detectors.

Roadmap

Known gaps against the v0.6.0 release.

Shipped in v0.6.0

• Chessboard detector rewrite. calib-targets-chessboard is the invariant-first rewrite — precision-by-construction on a private regression dataset of blurred, lens-distorted frames (high detection rate, zero wrong labels). Types renamed: ChessboardDetector / ChessboardParams / ChessboardDetectionResult → Detector / DetectorParams / Detection.
• Grid origin contract. Detection.target.corners is rebased to non-negative (i, j) with (0, 0) at the visual top-left (+i right, +j down in image pixels).
• projective-grid standalone surface. The line / local-H validator, the circular-statistics helpers, and the BFS growth (behind a GrowValidator trait) live in projective-grid with no chessboard-specific dependencies. calib-targets-chessboard is the reference consumer.
• Multi-component detection via Detector::detect_all / detect_chessboard_all. Same-board contract only; multi-board scenes are out of scope.
• #[test] testdata regression harness. Per-image gates in testdata/chessboard_regression_baselines.json covering mid, large, small0..5, and puzzleboard_reference/example0..9.

Deferred — tracked follow-ups

• FFI rewrite. calib-targets-ffi still mirrors the v1 chessboard param shape (with nested grid_graph_params / gap_fill / graph_cleanup / local_homography). Excluded from the workspace until the C-ABI surface is reshaped to the flat DetectorParams and the 3265-line src/lib.rs is split into purpose-scoped modules.
• Seed hoist. The pattern-agnostic BFS grow already lives in projective_grid::square::grow behind a GrowValidator trait. The sibling find_seed + SeedCandidateFilter hoist is still in the chessboard crate — the seed finder’s 300-line chess coupling (Canonical/Swapped label split, axis-alignment classification at A, 2× spacing violation check) needs its own trait design pass.
• example1 / example2 follow-ups. Two puzzleboard-reference images are tagged in the regression harness with ratchet_notes. example1 validation loop oscillates (needs either higher max_validation_iters or an accept-best-intermediate mechanism); example2 has a legitimate corner blacklisted by the edge-length cut under extreme view angle.

Open questions (from the chessboard spec §10)

• Degenerate axes (one axis with sigma = π) — current: drop the corner. Could a single-axis attachment pathway recover recall?
• Seed retry policy — current: try the next-best seed. A blacklist-and-research scheme might catch genuinely-bad seeds earlier.
• Distortion-curved lines — current: projective-line fit when ≥ 4 members, straight-line fallback. A true polynomial fit could absorb more distortion.
• Multi-seed growth — current: single seed, multi-component via post-hoc booster. A first-class multi-seed grower could reduce the Stage-8 dependency.
• Caller-provided cell-size hint — current: optional, mostly ignored. When could it tighten Stages 5–6 without compromising precision?

Contributions welcome.
